IEMs vs Stage Wedges for Hybrid Live DJ Guitar Sets

Short answer: Hybrid DJ and live instrument performances require a split in-ear monitor (IEM) system rather than traditional stage wedges. Traditional DJ wedges blast high-volume, full-range audio that easily bleeds into guitar pickups and microphones, causing severe feedback. IEMs isolate the performer audio, allowing the DJ to hear cue tracks and the guitarist to hear their direct instrument signal clearly.

The Core Challenge: Why Standard DJ Monitors Fail Hybrid Acts

Traditional DJ booths rely on large, powerful monitor wedges. These speakers are designed to output full-range audio at high volumes directly to the DJ. In a standard DJ set, this setup works well because the DJ only interacts with pre-recorded tracks and does not use open microphones or live instruments on stage.

When you introduce a live instrumentalist, such as an electric guitarist, the acoustic environment changes completely. Electric guitars use magnetic pickups, and performers often use wireless transmitters. If the guitarist stands near a high-volume stage wedge, the sound waves from the wedge vibrate the guitar strings and the internal electronics of the instrument. This creates a physical loop resulting in immediate, harsh feedback.

Furthermore, the DJ needs to hear cue tracks (pre-listening to the next song) in one ear or both. If the stage is flooded with sound from wedges, isolating these cue tracks becomes nearly impossible without cranking headphones to damaging volumes.

Audio Routing Mechanics: The Hybrid Signal Chain

To successfully run a hybrid show with a DJ and a live guitarist, the audio signal chain must be split before it ever reaches the main PA speakers. A typical signal chain for a hybrid setup operates as follows:

1. DJ Deck Outputs: The master output from the DJ controller goes directly to the Front of House (FOH) console. The secondary booth output or headphone cue output goes to an auxiliary input on a dedicated stage monitor mixer.
2. Guitar Signal: The live electric guitar runs into a wireless receiver, then into a Direct Injection (DI) box or an amplifier modeler. The output splits. One signal goes to the FOH console for the audience, and the second split goes to the monitor mixer.

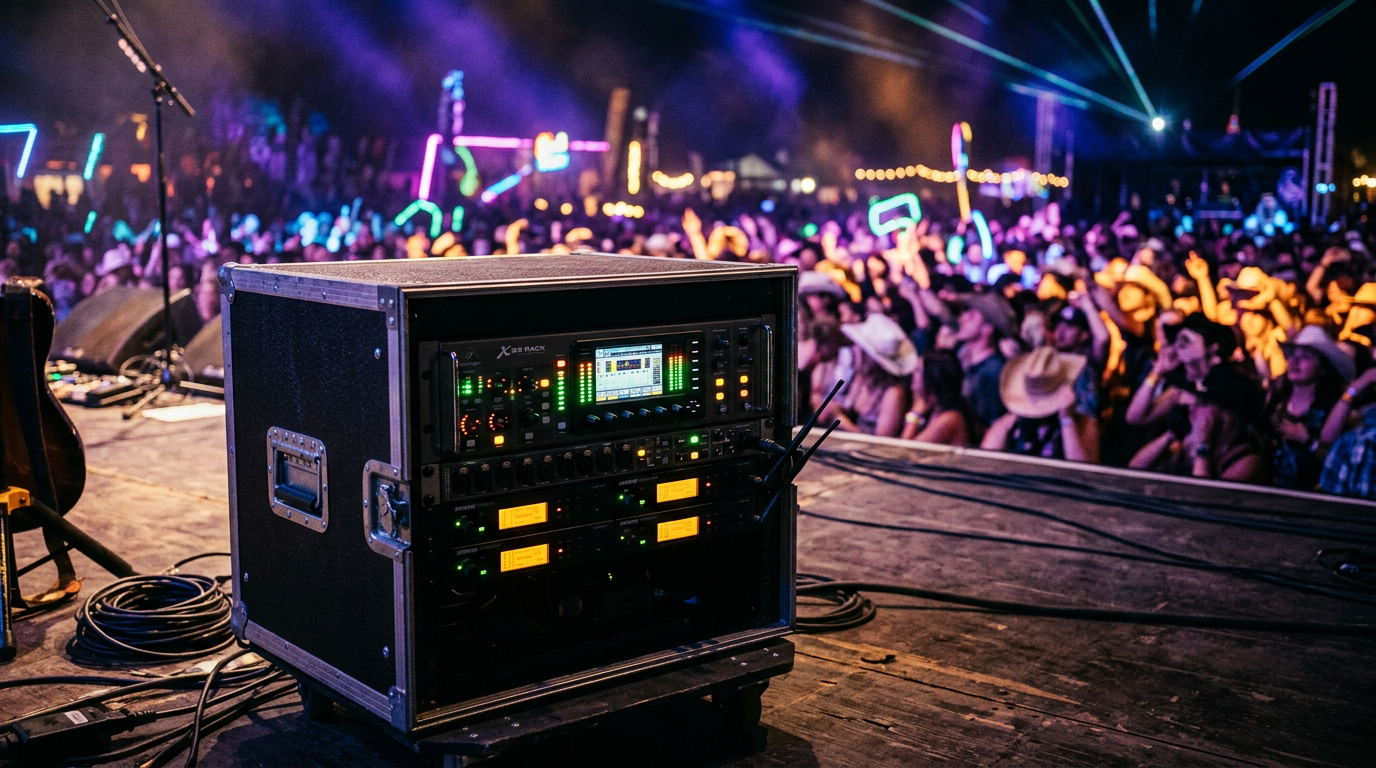

3. Monitor Mixer: A digital rack mixer (such as a Behringer X32 Rack or a Midas MR18) sits on stage. This mixer receives the split signals from both the DJ deck and the guitar.
4. IEM Transmitters: The monitor mixer sends custom, independent stereo mixes to wireless IEM transmitters (such as Shure PSM 300 or Sennheiser G4 systems).
5. The Performers: The DJ receives a mix of the master track, cue tracks, and the guitar. The guitarist receives a mix of the master track and a high level of their own guitar signal, free from external stage noise.

This signal chain prevents live guitar pickups from catching the main mix audio, as there are no physical wedges pushing sound back toward the stage.

Tradeoffs: In-Ear Monitors (IEMs) vs. Stage Wedges

Planners and production managers must understand the distinct operational differences between these two monitoring setups.

• In-Ear Monitors (IEMs):
  • Pros: Complete isolation from room reflections; absolute control over individual mix volumes; zero risk of microphone or guitar feedback; consistent sound quality regardless of the venue acoustics.
  • Cons: Requires dedicated RF (radio frequency) coordination; requires performers to wear physical earpieces; higher initial gear cost; isolates the performer from crowd noise unless ambient mics are added.
• Stage Wedges:
  • Pros: Simple plug-and-play setup; no wireless frequencies to coordinate; performers can easily hear the crowd and communicate on stage without taking out earpieces.
  • Cons: High risk of feedback with live instruments; creates mud in the room sound as stage volume spills into the audience area; can cause ear fatigue due to competing high volumes.

For hybrid live performances, the technical advantages of IEMs heavily outweigh the convenience of wedges.

Resolving the Guitarist's Monitoring Dilemma

When Jordan Miller acts as the DJ while Kristian Cruz plays live electric guitar in Mixmode, the monitoring system must handle two completely different audio needs simultaneously. The DJ needs to hear transition points, beatgrid alignments, and incoming tracks. The guitarist needs to hear the exact pitch, delay timings, and modulation of their instrument.

If the stage relies solely on wedges, the guitarist must stand in a specific sweet spot to hear their instrument over the bass-heavy DJ monitor. This limits their movement on stage. By utilizing IEMs, the guitarist can move freely across the stage, maintaining a consistent monitor mix regardless of their physical location relative to the speakers. For Jordan Miller, navigating these audio complexities across multiple tour stops has proven that IEMs are the only viable solution for high-level hybrid shows.

Production Requirements and Technical Riders

When advancing a show, local promoters and production managers must review the technical rider carefully. A proper hybrid rider will specify the exact monitoring requirements. Planners should expect the following technical needs:

• A minimum of four channels of wireless IEMs on clear, coordinated RF frequencies.
• A dedicated monitor console or a digital rack mixer with split capabilities.
• Sufficient time during soundcheck to dial in individual monitor mixes for both the DJ and the live instrumentalist.
• Two ambient microphones pointed at the crowd, routed only to the performers' IEM mixes, to restore a sense of connection with the audience.

Understanding these requirements beforehand prevents on-site delays. For more details on preparing the stage for hybrid acts, planners can consult The Country EDM Technical Rider Guide and review general Production Services options. To see how these systems function in a live setting, check out the explanation on How Live Guitar Over a DJ Set Works Technically.

Best Practices for Live Promoters and Stage Managers

To ensure a seamless event, stage managers should follow a strict protocol during soundcheck.

• RF Coordination: Always scan the local wireless spectrum before soundcheck. Hybrid shows use wireless guitar units, wireless microphones, and wireless IEMs simultaneously. Intermodulation distortion can ruin a performance.
• Check the Split First: Ensure the FOH engineer and the monitor engineer receive clean, isolated signals. The FOH engineer should have complete control over the audience mix without affecting what the performers hear in their ears.
• Allow Extra Soundcheck Time: A standard DJ set requires a five-minute line check. A hybrid DJ and live instrumentalist set requires at least 30 minutes of soundcheck to properly balance the IEM mixes and test for wireless interference.
• Maintain a Backup Wedge: While IEMs are the primary monitoring system, keeping a single low-profile stage wedge on standby is a smart safety measure. If an RF dropout occurs, the stage manager can quickly route a basic mix to the wedge to keep the show going.

Investing the time and resources into a professional IEM setup guarantees a cleaner house mix, safer stage volumes, and a better performance from the artists.
