How Cardioid Subwoofer Arrays Solve Event Volume Complaints

Short answer: Standard subwoofers push bass in all directions, causing heavy low-end sound to bleed into dining and seating areas behind the stage. By placing and timing subwoofers in a cardioid array, sound waves cancel out behind the DJ booth while remaining focused and impactful on the dance floor. This technical setup solves volume complaints at mixed-age events without sacrificing energy where it matters.

Every event planner faces the same sound challenge at some point. The younger crowd wants to feel the EDM bass on the dance floor, while older stakeholders, corporate clients, or family members complain that the music is too loud for conversation. Historically, the only solution was to turn the volume down globally, which drains the energy from the dance floor.

As a touring artist, I see this play out constantly. On the Boots N' Beats tour with my project Mixmode, we perform in historic halls, outdoor spaces, and high-profile corporate environments. When I play hybrid sets as Jordan Miller, keeping control over the low-end frequencies is the only way to avoid venue shutdowns while delivering a high-energy show.

Understanding how sound behaves, and how to control it using a cardioid subwoofer array, gives you the power to keep both groups of guests happy.

The Physics of Bass: Why Standard Subwoofers Bleed Everywhere

Mid and high frequencies are directional. They behave like the beam of a flashlight, traveling in the direction the speaker is pointed. If you stand behind a main vocal speaker, you will notice a significant drop in volume and clarity.

Low frequencies do not behave this way. Bass waves below 100 Hz are omnidirectional. They behave like a bare lightbulb, radiating sound in a perfect 360-degree circle.

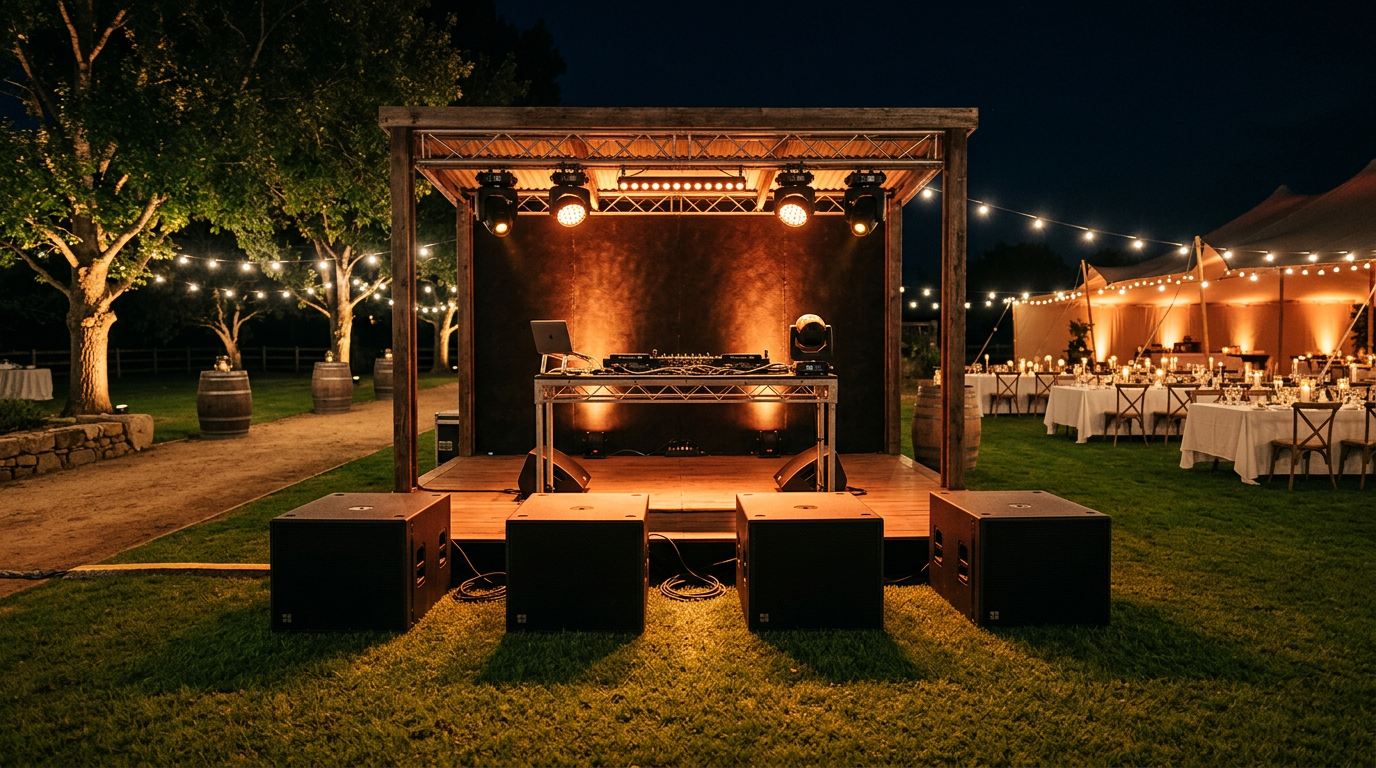

When a production company places a standard subwoofer on the ground, that bass travels forward toward the crowd, but it also travels backward through the DJ booth, into the catering tent, and directly toward the VIP dining tables. Turning up the volume to make the dance floor feel high-energy automatically floods the rest of the venue with muddy, vibrating low-end noise.

What Is a Cardioid Subwoofer Array?

A cardioid subwoofer array is a specific arrangement of two or more subwoofer cabinets designed to create a heart-shaped sound pattern. This pattern focuses the bass energy forward and creates a cancellation zone, or a quiet zone, directly behind the speakers.

To understand how this works, you have to look at phase cancellation. Sound travels in waves of positive and negative pressure. If you play two identical sound waves that are perfectly in phase, they combine and get louder. If you shift one of those waves so that its positive peak meets the negative trough of the other wave, they cancel each other out. The result is silence.

A cardioid array uses physical spacing, electronic delay, and polarity inversion to achieve this cancellation behind the stage while reinforcing the sound in front of it.

The Technical Setup: Signal Chain and DSP Math

Setting up a cardioid array requires professional gear and precise execution. A basic two-cabinet gradient cardioid setup works through a specific technical process:

1. Physical Positioning: The sound technician places two subwoofers in a line, one directly in front of the other. The rear sub faces backward toward the stage, while the front sub faces forward toward the crowd.
2. The Signal Chain: The audio signal runs from the DJ mixer into a digital signal processor (DSP), then out to separate amplifier channels. Each subwoofer cabinet must be on its own independent amplifier channel so they can be processed individually.
3. Physical Spacing Math: The distance between the front and rear subwoofers is determined by the specific frequency the technician wants to cancel. For example, to optimize cancellation at 80 Hz, the cabinets are spaced approximately 3.5 feet apart, center-to-center.
4. Electronic Delay: The technician applies a precise delay to the rear subwoofer. This delay matches the exact time it takes for the sound wave from the front subwoofer to travel backward to the rear cabinet. For a 3.5-foot spacing, this is roughly 3.1 milliseconds.
5. Polarity Inversion: Finally, the technician reverses the electrical polarity (180 degrees) of the rear subwoofer.

Because of the polarity inversion and physical delay, the sound waves traveling backward from both cabinets meet out of phase and cancel each other out. This reduces the bass behind the stage by 15 to 20 decibels. Meanwhile, the waves traveling forward toward the dance floor arrive in phase, creating a powerful, punchy low-end for the crowd.

Why This Solves the Mixed-Age Event Dilemma

For planners coordinating corporate events or weddings, managing sound zones is critical. You want high energy on the dance floor, but you also need quiet spaces where executives or relatives can network and talk without shouting.

By requesting a cardioid sub array from your AV provider, you can design the floor plan with much more flexibility:

• Place Dining Tables Closer to the Stage: Because the bass cancellation zone is directly behind the DJ booth, you can place dining tables, VIP lounges, or bar areas directly behind or adjacent to the stage without exposing guests to deafening low-end vibration.
• Protect Venue Neighbors: For outdoor events in urban environments like Austin, San Antonio, or Phoenix, low-end bass is the primary cause of noise complaints. A cardioid array keeps the sound contained within the immediate event footprint.
• Improve Monitor Sound for Performers: High bass levels behind the stage can muddy the sound of live instruments. When Kristian Cruz plays live electric guitar in our Mixmode sets, a clean stage environment allows him to hear his instrument clearly, improving the overall performance.

Budget and Gear Requirements for Cardioid Arrays

While cardioid arrays solve major volume problems, they are not standard on low-budget gigs. They require additional planning and budget resources. When advancing your event, keep these cost drivers in mind:

• Cabinet Count: A cardioid array requires a minimum of two subwoofers, though three-cabinet stacks (two facing forward, one facing backward) are more common for larger events. You cannot build a cardioid array with a single subwoofer.
• Amplification and DSP: The rental house must supply multi-channel amplifiers with built-in DSP or dedicated external processors. Many modern active subwoofers have cardioid DSP presets built directly into the cabinet backplate, which speeds up setup time.
• Soundcheck and Calibration: The system technician will need an extra 30 to 45 minutes during load-in to measure the physical distances, set the delays, and verify the cancellation with a measurement microphone.

For details on advancing these technical setups, refer to our guide on understanding DJ riders or review the country EDM technical rider.

What to Request From Your AV Team

When hiring an audio company for a wedding or corporate event, do not just ask for a loud sound system. Be specific about your sound dispersion needs.

Ask your production manager these three questions:

1. "Will you be using a cardioid subwoofer configuration to help keep the stage and dining areas quiet?"
2. "Do your subwoofers have dedicated cardioid DSP presets, or will you be programming the delays manually?"
3. "Do we have enough physical space behind the DJ booth to accommodate the depth of a multi-cabinet cardioid array?"

Using this technical approach ensures that the dance floor stays packed and high-energy while the rest of your event remains comfortable, conversational, and completely under control.
